New, OLED display with USB, SPI, I²C and PCAP touch

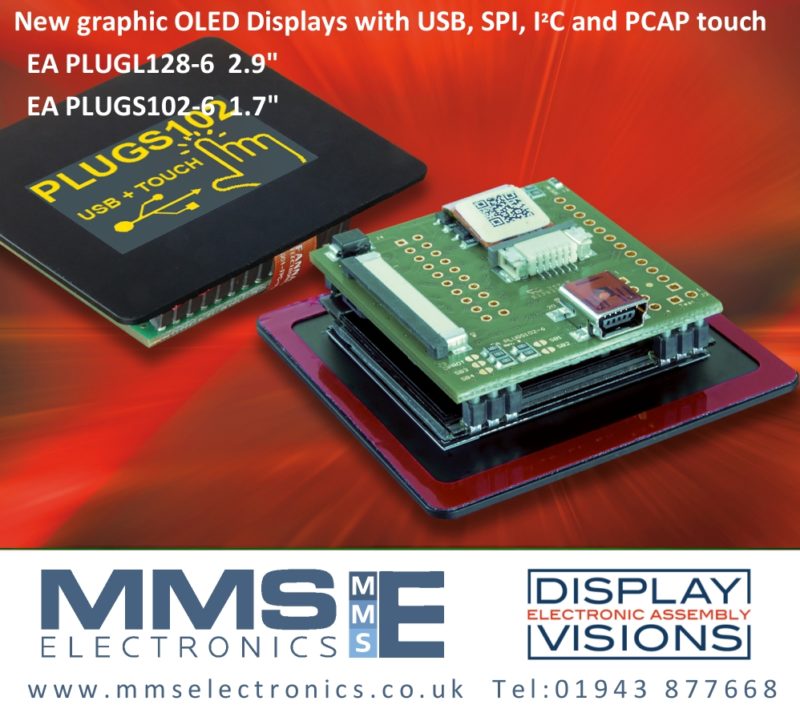

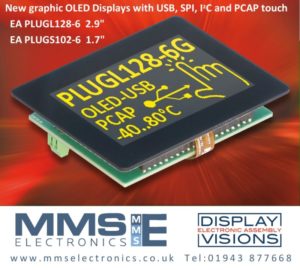

MMS Electronics Ltd introduced a new intelligent graphic OLED display with PCAP touch, USB port, SPI and I²C interface. Two screen sizes are available. EA PLUGL128-6 2.9” diagonal 128×64 and EA PLUGS102-6 1.7” diagonal 102×64. The display is easily programmed with powerful graphic commands and integrated character set. New fonts are easily imported with the free development software. Fonts can be scaled, rotated and accurately positioned. Fonts, images, animations and macros programs are saved on-board the display memory. Display can be used in landscape or portrait mode. The OLED technology is extremely fast, offers high contrast and 170° wide viewing angle. Usable in temperatures as low as -40°C.

The display is very fast and easy to read. It is protected by a robust, touch-sensitive glass pane. A gentle touch on the PCAP touch-screen is all it takes to change the display or trigger actions. Actions can also be triggered from the I/O. 8 digital I/O, 1 PWM output, 1 analogue output and 2 analogue inputs are available to be used for the application. A small loudspeaker is also integrated for acoustic feedback. Communication with the display can take place via USB, SPI, I2C or RS-232 interfaces. These are bidirectional and the serial interfaces are designed for 3.3V levels.  The display does not require a bezel and can simply be glued in portrait or landscape position.

The EA PLUGL128-6GTCZ (Z version) is fitted with a twelve pin screw terminal connector for easy connection to external sensors, detectors or switches and a 26-pin IDC connector providing access to all I/O and serial interfaces.

Most important features:

  • USB port
  • SPI, I2C, RS232 serial port
  • When powered from USB no additional power supply required
  • Touch-sensitive PCAP glass surface
  • ASCII with Ä, Ö, Ü and ß
  • Easy programmable graphic functions
  • LCD software tools support display setup
  • Extremely wide viewing angle
  • Digital and Analogue inputs and outputs

MMS Electronics Ltd based in Pool-in-Wharfedale, Leeds is the authorised UK distributor for the 2,000 plus LCD display products from Electronic Assembly GmbH (Display Visions) and represents many other world class display and sensor manufacturers.

MMS Electronics Ltd

Tel 01943.877668

www.mmselectronics.co.uk
