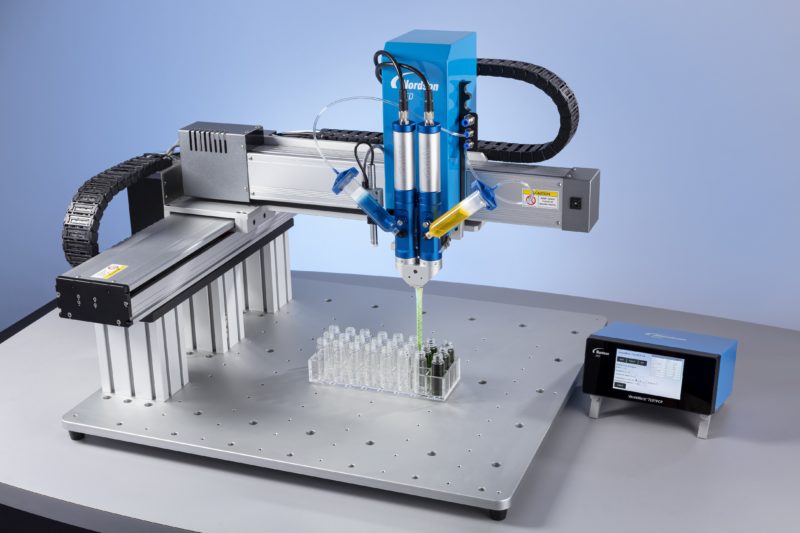

New 797PCP Pump Systems for Continuous Volumetric Dispensing of 1K and 2K fluids

• These new pumps provide a highly controlled volumetric dispensing of one-part and two-part fluids
• These new pumps of Nordson EFD offer precise, repeatable 1K and 2K fluid volumes as small as 0.01 mL per revolution with deposit volume tolerances equal to +/- 1%
• The design of the 797PCP is based on the progressive cavity principal where its core components — a rotor and stator — form a perfectly sealed metering chamber. As it rotates, the pump allows continuous volumetric dispensing that is unaffected by external factors such as changes in viscosity, fluctuating fluid pressure, and the full-to-empty effect in syringe barrels.
• Both the standard and 2K pumps work best when controlled by either 7197PCP-DIN or ValveMate 7197PCP controllers allowing for precise adjustment of dispensing parameters. The DIN rail version offers an intuitive web-based interface. The ValveMate version offers an intuitive touchscreen interface.
