Mecmesin Digital Force Gauges as easy as ABC

Looking for an economical force testing solution to meet the quality control challenges of your components or products?

Our digital force gauges provide the answer to achieving accurate and precise tension and compression measurement. Excellent value for money they are suited to consumers looking for:

  • A simple & portable hand-held device for on-the-go use & minimal operator training
  • Wide application use with a range of grip and accessories

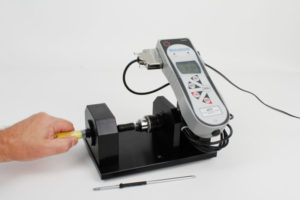

  • A versatile solution with potential to be built into your own test rig
  • Compatibility with data collection devices to log and store results

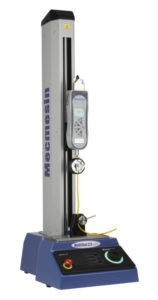

However, should you require repeatable test results under controlled speed conditions our adaptable gauges can be mounted to one of our manual or motorised test stands to reduce/remove operator variables and the risk of injuries such as RSI.

With 3 ranges of digital force gauges available (varying in capacity, accuracy and data functions) to suit your test application and budget requirements, there is no doubt that we have the solution for you.

Advanced Force Gauge: Our top-of-the-range AFG gauges provide the best performance and accuracy

This range comprises of 10 models, 2.5 N to 2500 N (0.55 lbf to 550 lbf)

The Advanced Force Gauge may be used hand-held or fixed to a test stand for optimum tension and compression testing. It has accuracy ±0.1% of full-scale – supplied with a fully-traceable calibration certificate. This gauge offers enhanced functions for quick and easy operation and test analysis, including:

  • 1st peak & ultimate max readings
  • Audible and visual pass/fail alarms
  • Invertible display
  • Storage of up to 500 readings
  • Data output – RS232
  • Overload warning
  • N, lbf, ozf and kgf force measurement units
  • Data acquisition software for addition test evaluation options
  • Ability to connect external Force and Torque sensors

Basic Force Gauge: Our mid-range BFG gauges enable accurate testing of tension and compression applications

This range comprises of 6 models, 10 N to 2500 N (2.2 lbf to 550 lbf)

Slightly less sophisticated than the Advanced Force Gauge range, with accuracy ±0.25% of full-scale, this Basic Force Gauge may also be used hand-held or fixed to a test stand. Supplied with a fully-traceable calibration certificate this gauges’ test functions, include:

  • Ultimate peak hold
  • Live display mode for continuous monitoring
  • Data output – RS232
  • Overload warning
  • N, lbf, ozf and kgf force measurement units
  • Data acquisition software for addition test evaluation options

Compact Force Gauge: Our CFG+ is a range of an entry-level gauges for quick and simple tests

This range comprises of 3 models, 50 N to 500 N (11 lbf to 110 lbf)

The Compact Force Gauge provides a digital, lightweight, pocket-sized alternative to an analogue gauge. With accuracy ±0.5% of full-scale this gauge may also be fixed to a test stand for increased repeatability. Test functions include:

  • Ultimate peak hold
  • Data output – RS232
  • Overload warning
  • N, lbf, ozf and kgf force measurement units

For advice and guidance on the best test equipment for you, please contact us on:

t: +44 (0) 1403 799979

e: info@mecmesin.com
w: www.mecmesin.com

Mecmesin Ltd.

Newton House,
Spring Copse Business Park,
Slinfold, West Sussex,
RH13 0SZ, United Kingdom
