Making sense of flexible sensor systems

A team of researchers from Osaka University and Leibniz Institute for Solid State and Materials Research developed the world’s thinnest and lightest magnetic sensor matrix sheet system that visualises the two-dimensional distribution of magnetism on various surfaces.

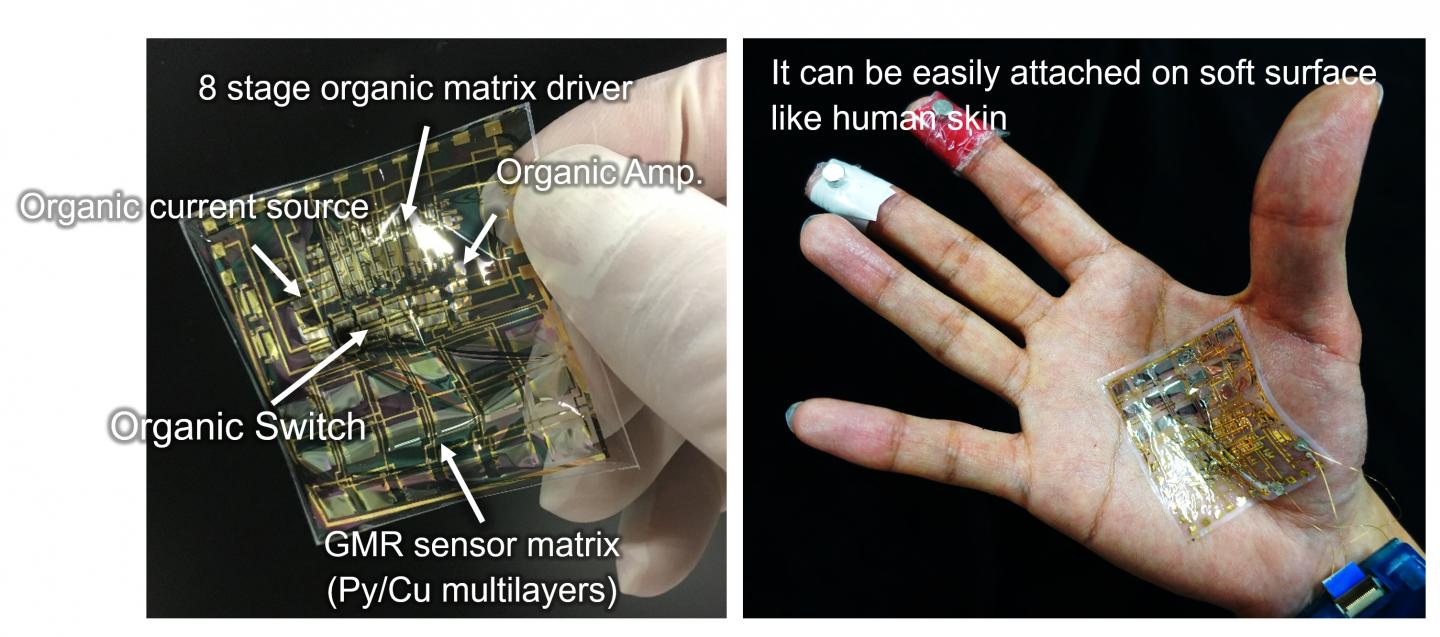

Fig 1: Imperceptible magnetic sensor matrix system. Credit: Osaka University

Conventional magnetic sensor circuits consist of silicon-based hard electronic elements integrated on a substrate with a hardness similar to that of glass, meaning they can be only placed on flat surfaces.

Conversely, flexible soft magnetic sensors have also been developed, but there is no device integrating a driving circuit, sensor scanning mechanism, signal processing circuit, and wireless measurement unit, all of which are required to form a system. “This is because the fabrication of a flexible magnetic sensor element is difficult. Furthermore, it is hard to integrate the fabrication process with circuit technology,” explains lead author Masaya Kondo. The research is published in Science Advances.

Now, this joint research team has developed a thin and soft (“skin-like”) magnetic sensor matrix sheet system by integrating flexible electronic elements called organic transistors and giant magnetoresistive elements on a 1.5-μm-thick plastic film. This imperceptible circuit fabricated on a thin plastic film can be attached onto the skin of a person without causing discomfort and can function properly even when folded (Fig. 1).

The magnetic sensor matrix sheet system, with a sensitivity ten times higher than that of conventional systems, not only detects and amplifies weak magnetic signals, but also visualizes the two-dimensional distribution of magnetism in real time by automatically scanning magnetic sensor elements arranged in a matrix pattern (Fig. 2).

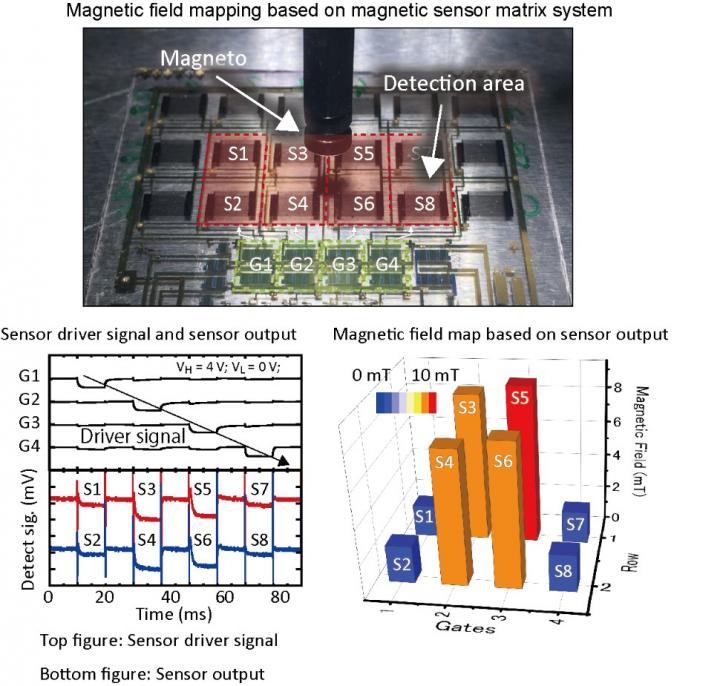

Fig 2: Magnetic field mapping by using a magnetic sensor matrix system. Credit: Osaka University

Among physical information, magnetic information obtained via a two-dimensional sheet-type magnetic sensor system is much more precise than electrical information because magnetic sensors have high spatial resolution due to the high permeability of magnetism in substances. A sheet-type sensor provides high-precision physical information as it can be adhered to a variety of objects regardless of shape.

“Attaching our sheet-type sensor to a reinforced structure identifies the precise locations of damage by mapping the distortion of magnetism caused by deteriorated reinforcing steel bars. Also, once the sensitivity of the sensor is improved further, higher precision cardiac diagnosis will be achieved by magnetic mapping than by conventional electrocardiography,” says Prof. Sekitani, who led the study.
