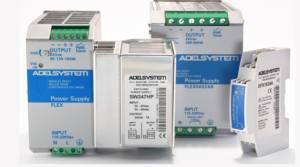

INTELLIGENT POWER SUPPLY UNITS

The Adel system offers a truly complete range of industrial power supply units for different applications. The wide range of input voltages enables them to operate in any part of the world. The majority of the range is available with UL and CSA type-approved, with design based on experience gained over the years on more than 24 models.

The Flex range is suitable for use in varied applications and requirements, according to the existing norms. They are DIN Rail mountable, simple and safe and offer IP20 protection. The FLEX range of products is characterised from 1, 2 and 3-phase input up to 700W with current rating ranging to 25A and a power flexibility that reach the 50% of the rated current In. The declared ambient temperature operations field start from 40 to 60°C. There are three modes for output and short-circuit overload protections, (Hiccup Mode, Fold Back and Restart after Main). The compact sizes of the units and the appliance to the EN 60204-1 Safety of Electrical Equipment Machines changes the way to supply power to the control panel. Besides the 1-phase 115-230Vac units we offer the 2-phase 230-500Vac and 3 phase 400-500Vac units, which allows to use and store only one product.

Main Features
♦ 3 protective functions: Hiccup Mode, Fold Back, Restart after Main
♦ Declared ambient temperature operations field: 40,50 e 60°C (suitable for any type of applications)
♦ Only one product for 230-400-500 Vac
♦ Standards Conformity: EN 60204-1 and EN/IEC 60529 (IP20 protection class)
♦ DIN Rail Mounting
♦ Extremely small size
♦ Output Voltage: 5; 12; 24; 48 Vdc
♦ Output Direct Current: 1-phase: 2 – 2,5 –5 – 7,5 – 9 -14,5 –25A – 2-phase: 5 –7,5 –14,5A – 3-phase: 25A
