RTD and Thermocouple sensor failure can be costly for any process or operation. Wouldn’t it be great if your temperature transmitter gave you early warning of impending sensor failure? Moore Industries THZ3/TDZ3 Dual Input Smart HART Temperature Transmitters and STZ Functional Safety Dual Input Smart HART Temperature Transmitters do just that. With built in Sensor Drift and Corrosion Detection features, you can program these transmitters to alert you when your sensors are on the path to failure, providing analysis and early diagnosis capability typically available only with higher level asset managers or Big Data algorithms found in the Cloud. Featuring advanced dual sensor monitoring including backup or failover for sensor failure, these new temperature transmitters are more capable than ever.
Built-in Barriers for Direct Connection of Sensors in Intrinsically-safe Protected Hazardous Areas

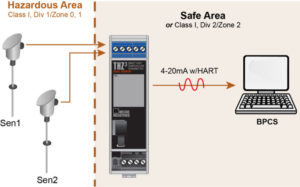

Plus, DIN models of the THZ3 and STZ are also available with an Associated Apparatus -AIS option which includes a built-in Intrinsically-safe barrier in its front end. This eliminates the need for the additional cost of a barrier, cabinet space, a high integrity clean ground connection, separate power supply or custom vendor back-plane – dramatically reducing the cost of purchase, installation and long-term maintenance. The THZ3-DIN and STZ-DIN with the -AIS Option are suitable for installation in Non-Hazardous or Class I Division 2/Zone 2 areas with direct connection to temperature sensors located in Class I Div 1/Zone 0/1 locations.
Bring predictive failure analysis right to the field with Moore Industries latest smart HART temperature transmitters:
THZ3/TDZ3 Dual Input Smart HART Temperature Transmitters
The THZ3 and TDZ3 Dual Input Smart HART transmitters simplify your operations with two sensor inputs, and advanced features that give you far more control over your temperature measurements. Each sensor is individually selectable and programmable via HART or DTM. Download a copy of the THZ3/TDZ3 Data Sheet or visit the THZ3 or TDZ3 Catalog pages.
STZ Functional Safety Dual Input Smart HART Temperature Transmitters
The dependable, accurate SIL3 capable STZ Functional Safety Dual Input Smart HART Temperature Transmitter gives you more control over your temperature measurement with advanced features and dual sensor input that provides backup and failover protection in case of a sensor failure. Download a copy of the STZ Data Sheet or visit the Catalog page.
See all of the Smart HART Temperature Transmitters in the Moore Industries Online Catalog
