DEWESoft is now recognized as a key supplier of Data Acquisition hardware & software to major customers in automotive, aerospace and railway industries. Innovation is the key to Dewesoft’s success with products that meet a wide range of applications, from small tool-box data loggers to high speed, high channel-count systems, with support for video, GPS, and a wide range of sensor types.
The first Dewesoft product was the Dewe-43, introduced 7 years ago and is as popular as ever, offering a compact, 8ch USB logger with counter-encoder and CAN bus interface. With recent upgrades it is now the Dewe43A

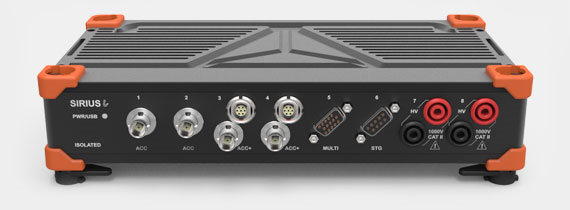

A major innovation was the development of SIRIUS with 24bit dual-core analogue-to-digital convertors providing a stunning 160dB dynamic range and with the ability to be configured for small or large measurement applications.
SIRIUS offers a wide range of front-end options and also fan-less versions for dusty environments where the system can operate without cooling. The very latest SIRIUS introduction is a completely waterproof version, designed for the harshest environmental conditions.
The battery powered portable instrument is designed according MIL standards and capable of withstanding harsh conditions in heavy environments such as construction and in Military applications. The instrument supports up to 32 galvanic isolated high dynamic input channels up to 1MS/s, which support almost any kind of signal and sensor. Analogue voltage up to ±1000V, accelerometers, charge sensors, strain gauges, load cells, pressure sensors, thermocouples, RTDs, etc. Digital, GPS, ARINC 429, 1553, PCM, Chapter 10, Flexray, CAN, RS232, Ethernet and more… The system can easily be expanded up to hundreds of channels using SIRIUS and KRYPTON modules. High-speed cameras are directly supported.
A powerful INTEL I5 processor with 500GB storage and a high resolution 12“ screen guarantees measurement performance from -10° to +60°C.
Based on the award winning DEWESOFT-X2 software, the instrument is used in multi-function analysis applications such E-Mobility, with NVH Analyzer, Combustion Analyzer, Power Analyzer,ADAS analyzer with the integrated 100Hz GPS receiver with RTK.
The SIRIUS R8D – RACK DISPLAY system can be configured with any SIRIUS slice with a mix of 200KS/s and 1MS/s modules all synchronized and able to stream data at maximum sampling rate for up to 128 channels
KRYPTON thermocouple modules have universal input connectors allowing use of any thermocouple type. All the channels are isolated between each other and the ground. They run with 100 Hz sample rate per channel.
KRYPTON low voltage modules have 100 V isolated amplifiers, with sample rate that reaches more than 10 kHz per channel. All the channels are isolated between each other and the ground.
KRYPTON DAQ modules are engineered precisely to withstand all conditions and operate flawlessly in cold places, hot places, dust, mud, water and snow. They are shock proof, vibration proof, milled out from a solid block of aluminium and filled with rubber, providing IP65 & IP67 environmental rating.
Small KRYPTON modules allow perfect placement near the source of your data. Connect with a single cable for data, power and sync. Short sensor wires save cost and improve the signal quality. Data link allows up to 100m distance from module to module. You can also stack them in blocks using simple lock mechanism.
KRYPTON modules are connected to your computer via industrial standard Ethernet connection (EtherCAT protocol) which provides 100 Mbit data link for hundreds of channels with more than 10 kHz data rate per channel and perfect synchronization between devices.
DEWESoft-X software is the driving force behind all Dewesoft hardware and is under continual development and improvement. DEWESoft-X2 is now released with up to 10x faster graphics and 4x faster math processing which can only be achieved because both hardware and software are developed in-house which enables even further development of application specific software solutions. DEWESoft software is licenced with the hardware and the price is included in the hardware cost with free upgrades as DEWESoft-X develops.
The continual success of Dewesoft is, in no small part, due to collaboration with customers and is what has made DEWESoft software what it is today and DEWESoft X2 is no exception.
Applications requiring a specific user interface with math processing have been a major factor in the success of Dewesoft.
