Contrinex inductives help get the beers in

A drinks producer needs to conduct a final inspection check of cases of bottles after the lid of the corrugated cardboard case has been closed and sealed. A bottle count is performed by verifying the position of bottle caps through layers of cardboard at the top of each sealed case.

Customer Application

Bottles that are packed into corrugated cardboard cases require both the verification of the placement and number of bottles in the case, ideally after they have had their lids hot-glued closed. A concern is that a bottle can break on impact with the bottom of the case, contaminating the machinery and subsequent packages. Bottles can also be absent or wrongly positioned or a cap might be missing from a bottle.

Whilst a vision system could be used, this would need to be done before the lid of the case is closed, whereas verification of the closed case would be preferable.

The absence of a bottle cap in a specified position is a good indicator of a missing or shattered bottle and so the challenge is, therefore, to detect bottle caps through multiple layers of corrugated cardboard material of varying thickness and density.

Customer Solution

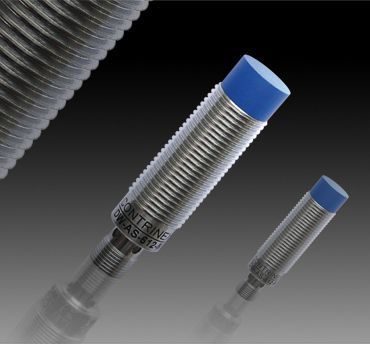

Contrinex’s rugged Extra-Distance inductive sensors from the ‘500 Series’ are ideal for this application, being robust and accurate. These highly reliable, IP67 rated, M30-diameter sensors have a chrome-plated brass body with a PBTP sensing face and vacuum-encapsulated electronics. Well suited to operating in a hostile environment, the 3x sensing distance of 22mm enables fully contactless operation in this relatively high-speed packaging process.

A sensor array is placed over the conveyor and travel path of the cardboard cases. For each lane of bottles in a case, an M30 diameter inductive sensor is mounted on the array. A non-embeddable sensor is chosen as it most closely equates to the size of the bottle cap and yields the greatest sensing distance for the available target area and is sufficient to allow for minor variations in the height of the case as it passes under the sensor bridge. This not only ensures reliable sensing but also keeps the sensor at a safe distance from any impact, avoiding consequent downtime, with the sensors interfaced with a controller that makes the logical decision to accept the package or reject and divert it.
